Liax |
|

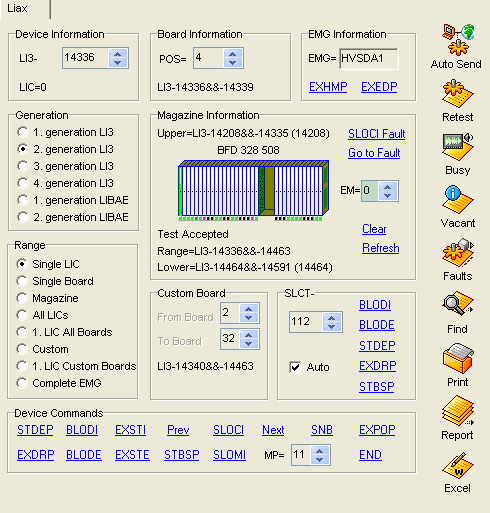

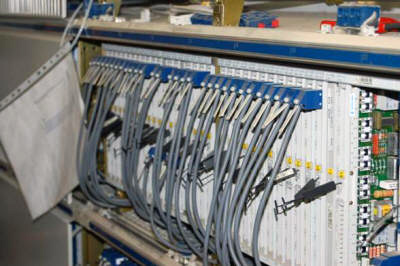

The Liax manager is designed to serve operation- and maintenance technicians working with faulty LIB-boards, and installation test technicians working with new EMG-EM’s. In "ToolBox", several tools are available to generate test commands (SLOCI or SLOMI) on basis of SLFAP or STBSP printouts. Sequences of unlimited length can be tested by input to SLOCI-tool, command responses can be examined and commands can be generated for repeated test of fault suspected devices. If you have a fault suspected device, you can enter the number to the edit field, and the manager will calculate it’s physical position depending of the LIC-type setting. (1 - 4 generation SDM / LSM plus 1 – 2 generation ISDN2 are supported) The calculated EM-number is valid, only if first device number of the EMG is a multiple of 2048, 1024 or 512, and the device numbers of the EM’s are consecutive. So it’s always a good idea to press the EXPOP-button to locate the magazine. Use the BLODI / BLODE-buttons to block and deblock all devices on selected board before and after replacement, and perform test of the new board by pressing the SLOCI-button. The EXSTI / EXSTE-buttons are for use when a board is appended or removed permanently, and EXDEP, EXRDP and STDEP-buttons are useful to watch the connection- and seizure state. The SLOMI-button performs a line measurement with program 11 as default. The Manager offers a wide range of information's about the actual magazine as well as the neighbor magazines. Holding the mouse over the magazine image, will open a hint balloon showing the ROF number. The manager inter-works with the terminal when sending SLOCI commands, turning fault free LIB boards green, and if one or more circuits are found faulty the color will reflect the test result. A small icon below each board will remember the test result color and show the fault codes in a hint balloon. A click on the icon will send a command for repeated test of the faulty circuits, and board / icon color will be updated according to the new test result. When all circuits are tested fault free, all icons must remain green. You can work with single LIC / LIB or multiple LIB's. SLOCI and SLOMI commands are placed as a DT on a new editor tab sheet, when working with multiple LIB's. Selecting All Boards, All LICs or 1. LIC All Boards will extend device sequence to range over all 128, 64 or 32 devices within the magazine. During transmission of a SLOCI DT, the board color is updated according to the test result. If you switch on the Auto Send button, commands are transmitted immediately, and otherwise commands are placed in the Command Editor for execution. Hold the mouse over any command button, to open a hint balloon showing the full command to be generated on click. If you select a LIB-board by a mouse click - the first device number of the board within the current magazine range is written in the edit field. You can in this way select by position, if the device number is unknown. A test Result report can be Printed or
shown as rich text (RTF) in an Editor with
detailed information about each board and circuit involved. The result
colors are maintained in the report, giving you a brilliant survey of the
magazine prior to board replacement. |
|
Liax report example:EMG=FIGARO EMG=FIGARO,EM=(4) Test result on board level : POS=036 Test Accepted POS=035 Test Accepted POS=034 Test Accepted POS=033 Test Accepted POS=032 Test Accepted POS=031 Test Accepted POS=030 Circuit BUSY POS=029 Unequipped POS=028 Test Accepted POS=027 Test Accepted POS=026 Test Accepted POS=025 Unequipped POS=023 Test Accepted POS=022 FAULT=1&2&4&5 POS=021 Unequipped POS=020 FAULT=1&2&4&5 POS=019 Test Accepted POS=018 FAULT=1&2&4&5 POS=017 Test Accepted POS=016 Test Accepted POS=015 Test Accepted POS=014 Test Accepted POS=013 Unequipped POS=012 Test Accepted POS=011 Test Accepted POS=010 Test Accepted POS=009 Test Accepted POS=008 Test Accepted POS=007 Test Accepted POS=006 Test Accepted POS=005 Test Accepted POS=004 Test Accepted Number of faulty ROF 131 875/42 boards: 3
Test result on circuit level : DEV POS SNB RESULT LI3-002560 (004) Test Accepted LI3-002561 (004) Test Accepted LI3-002562 (004) 07772514 Test Accepted LI3-002563 (004) 07773145 Test Accepted LI3-002564 (005) 07773352 Test Accepted LI3-002565 (005) 07773635 Test Accepted LI3-002566 (005) 07772465 Test Accepted LI3-002567 (005) Test Accepted LI3-002568 (006) 07761970 Test Accepted LI3-002569 (006) 07773829 Test Accepted LI3-002570 (006) 07772522 Test Accepted LI3-002571 (006) Test Accepted LI3-002572 (007) Test Accepted LI3-002573 (007) Test Accepted LI3-002574 (007) Test Accepted LI3-002575 (007) 07773468 Test Accepted LI3-002576 (008) Test Accepted LI3-002577 (008) Test Accepted LI3-002578 (008) 07772530 Test Accepted LI3-002579 (008) 07772531 Test Accepted LI3-002580 (009) 07772164 Test Accepted LI3-002581 (009) 07772371 Test Accepted LI3-002582 (009) 07772534 Test Accepted LI3-002583 (009) 07772741 Test Accepted LI3-002584 (010) Test Accepted LI3-002585 (010) Test Accepted LI3-002586 (010) 07772538 Test Accepted LI3-002587 (010) Test Accepted LI3-002588 (011) Test Accepted LI3-002589 (011) 07772908 Test Accepted LI3-002590 (011) Test Accepted LI3-002591 (011) Test Accepted LI3-002592 (012) Test Accepted LI3-002593 (012) 07772201 Test Accepted LI3-002594 (012) 07772502 Test Accepted LI3-002595 (012) 07775315 Test Accepted LI3-002596 (013) Unequipped
LI3-002600 (014) 07772552 Test Accepted LI3-002601 (014) 07772553 Test Accepted LI3-002602 (014) 07772554 Test Accepted LI3-002603 (014) 07773536 Test Accepted LI3-002604 (015) 07771980 Test Accepted LI3-002605 (015) Test Accepted LI3-002606 (015) 07772870 Test Accepted LI3-002607 (015) Test Accepted LI3-002608 (016) 08647161 Test Accepted LI3-002609 (016) 07773451 Test Accepted LI3-002610 (016) Test Accepted LI3-002611 (016) Test Accepted LI3-002612 (017) Test Accepted LI3-002613 (017) 07772565 Test Accepted LI3-002614 (017) Test Accepted LI3-002615 (017) Test Accepted LI3-002616 (018) 07772512 Test Accepted LI3-002617 (018) FAULT=1&2&4&5 LI3-002618 (018) 07772242 Congestion LI3-002619 (018) SLCT Blocked LI3-002620 (019) Test Accepted LI3-002621 (019) 07772573 Test Accepted LI3-002622 (019) Test Accepted LI3-002623 (019) 07773008 Test Accepted LI3-002624 (020) 07773534 Test Accepted LI3-002625 (020) FAULT=1&2&3&4&5 LI3-002626 (020) Test Accepted LI3-002627 (020) FAULT=1&2&4&5 LI3-002628 (021) Unequipped
LI3-002632 (022) Test Accepted LI3-002633 (022) Test Accepted LI3-002634 (022) 07772572 Test Accepted LI3-002635 (022) FAULT=1&2&4&5 LI3-002636 (023) 07772584 Test Accepted LI3-002637 (023) 07761194 Test Accepted LI3-002638 (023) Test Accepted LI3-002639 (023) Test Accepted
LI3-002640 (025) Unequipped
LI3-002644 (026) Test Accepted LI3-002645 (026) Test Accepted LI3-002646 (026) Test Accepted LI3-002647 (026) Test Accepted LI3-002648 (027) Test Accepted LI3-002649 (027) Test Accepted LI3-002650 (027) 07773117 Test Accepted LI3-002651 (027) Test Accepted LI3-002652 (028) Test Accepted LI3-002653 (028) 07772605 Test Accepted LI3-002654 (028) 07773235 Test Accepted LI3-002655 (028) Test Accepted LI3-002656 (029) Unequipped
LI3-002660 (030) 07771081 Test Accepted LI3-002661 (030) 07772613 Circuit BUSY LI3-002662 (030) 07772614 Test Accepted LI3-002663 (030) 07773241 Test Accepted LI3-002664 (031) 07772616 Test Accepted LI3-002665 (031) 07772696 Test Accepted LI3-002666 (031) Test Accepted LI3-002667 (031) 07772619 Test Accepted LI3-002668 (032) 07772620 Test Accepted LI3-002669 (032) Test Accepted LI3-002670 (032) Test Accepted LI3-002671 (032) 07773122 Test Accepted LI3-002672 (033) Test Accepted LI3-002673 (033) 07772625 Test Accepted LI3-002674 (033) Test Accepted LI3-002675 (033) Test Accepted LI3-002676 (034) Test Accepted LI3-002677 (034) 07772629 Test Accepted LI3-002678 (034) 07802289 Test Accepted LI3-002679 (034) Test Accepted LI3-002680 (035) 07773319 Test Accepted LI3-002681 (035) 07773224 Test Accepted LI3-002682 (035) 07772634 Test Accepted LI3-002683 (035) Test Accepted LI3-002684 (036) Test Accepted LI3-002685 (036) Test Accepted LI3-002686 (036) Test Accepted LI3-002687 (036) 07773732 Test Accepted Number of LIC's: 128 |
