IOG Manager

The new IOG manager is the latest addition to Figaro's huge collection of tools and managers. The manager is assigned to the IOG20 hardware, but can used with a few limitations with IOG11.

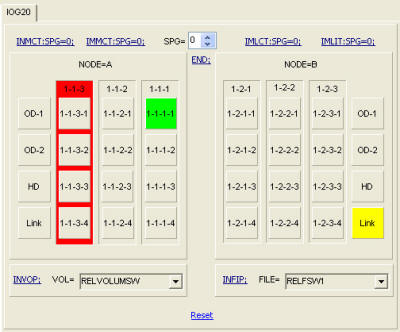

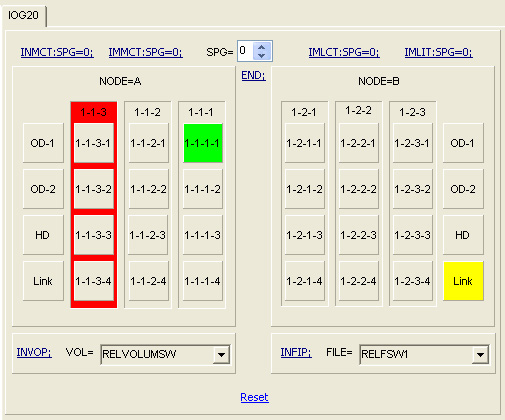

Adjust the SPG spin editor to match your SPG if working in a multi SPG environment. Move the mouse over the units to see the units hover into a white color, if a popup menu, holding useful commands with parameters set to match the units, is attached. Right click the unit to open the menu and select command to transmit. Commands with blank parameters are transferred to the command editor for modification, valid commands are transmitted immediately.

SPG commands: INMCT  IMLCT  IMLIT  IMMCT  IMCSP  MCDVP  ILDAP  INFUI  FCSPI  FCSSI  FCSRI  FCSPE  DISFP

NODE commands:  BLSNI  BLSNE  RESUI RESUP  SYRSI  IMLCT  IMMCT  IMRDP  FCSPI  FCSSL  FCSLS FCSDL  FCSSI  FCSRI  FCSPE

LU commands:  IMLCT  ILLUP  ILBLI  ILBLE  ILNPP

PORT commands:  IMLCT  ILNPP  ILBLI  ILBLE  ILLTI

OD commands:  INMCT  INVOL  INVOE  INVEP  INFIP  SYMTP  INMEI  FCSDL

HD commands:  INMEP

LINK commands:  FCSLI  BLSLI  BLSLE  EXSLP

VOLUME commands:  INMCT  INVOP  INVEP

FILE commands:  INMCT  INFIP  INFIR  INFUP  IOIFP  INFII

ALI commands:  ALBLI  ALBLE  ALLTI  ALLTE  ALALP

To work with VOLUMENS and FILES click the INVOP or INFIP label to read data from connected IOG, and see the combo boxes filled with items. Select an item from the drop down list, and right click over the field and select desired command for immediate transmission.

Blocking, deblocking and separation of units turns colors into red, green or yellow to help you keep track on work progress and state. Left click an item to reset the color or use the Reset label to reset the manager.
